DIONISIO - CKWA/C

MULTICOMPRESSOR WATER-COOLED CONDENSING UNITS IN SUBCRITICAL CONDITIONS

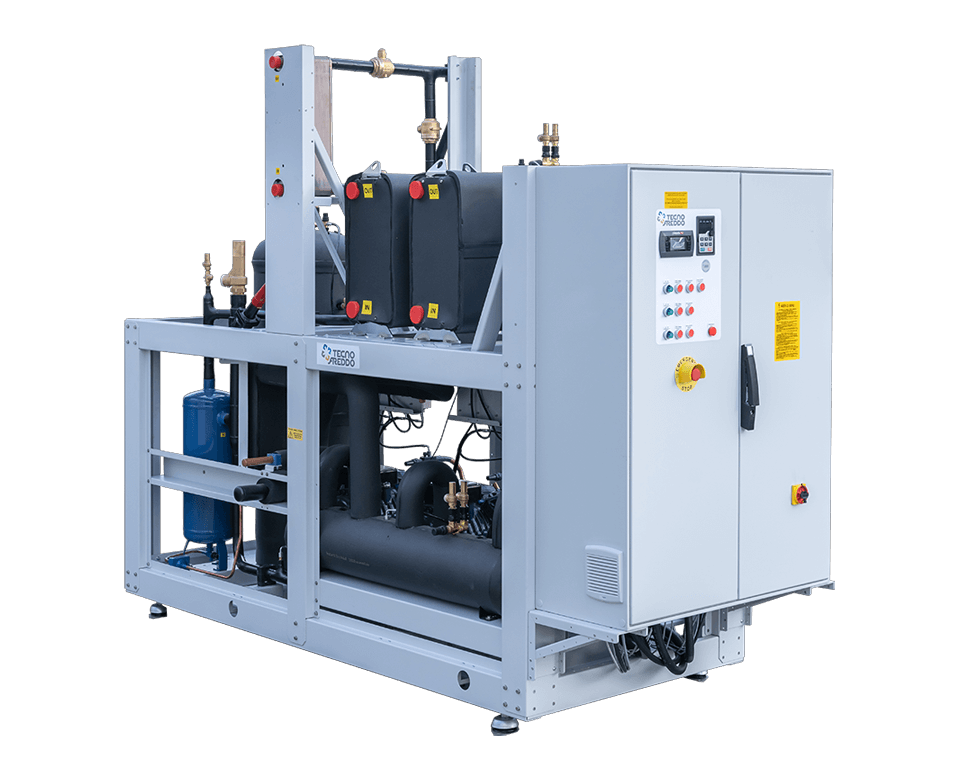

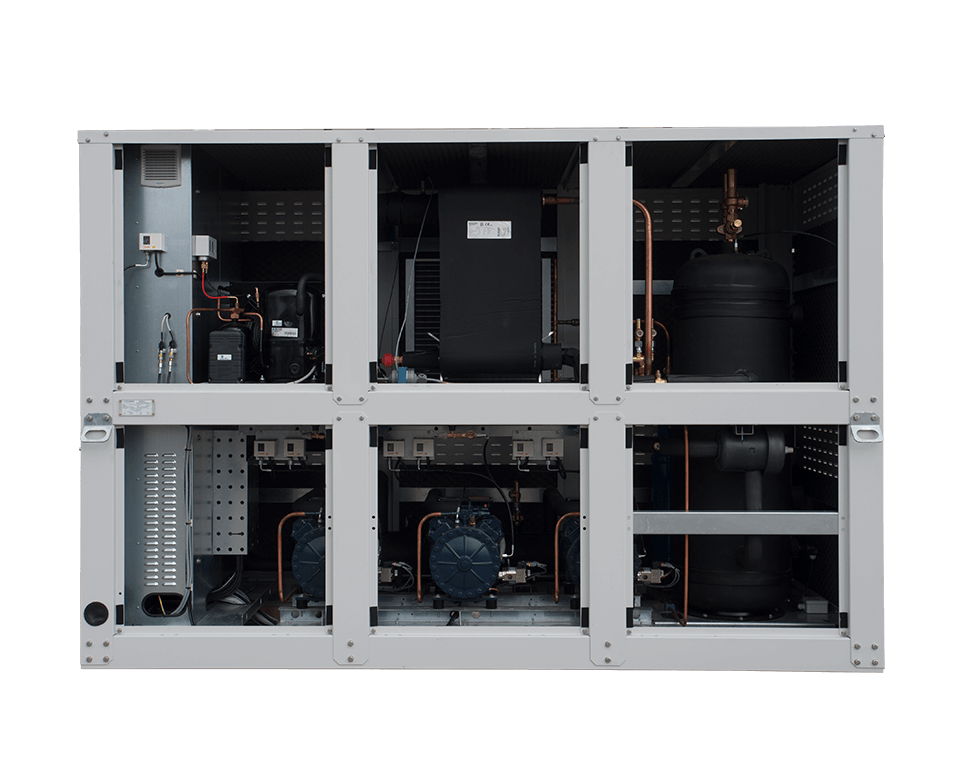

The DIONISIO line of the ECO3 series by Tecnofreddo includes moto-condensing units using carbon dioxide (CO2) as refrigerant, in subcritical regime. The units are equipped with two or more semi-hermetic reciprocating compressors, connected in parallel. The line includes units without enclosure for indoor installation (CKWA) and with enclosure for outdoor installation (CKWC). Condensation is achieved with forced circulation of an antifreeze solution (glycols or other fluids) coming from other systems.

The series is made on a sturdy self-supporting carpentry made with electro-galvanized painted sheet metal profiles and press-folded sheet metal profiles. All sheet metal components are polyester powders coated, polymerized in an oven at 180 ° C color RAL 7035 (other RAL on request). The range includes brazed plate heat- exchangers (BPHE).

Main Advantages

The range includes a liquid receiver with an internal coil which, during the stand-steel or black-out phases, allows the liquid receiver to cool through its connection to an external unit with an autonomous system (back-up unit).

On request, DIONISIO series is available with different optional depending on the specific needs of the system required

Plus

Natural refrigerant (GWP = 1 and ODP = 0)
Maximum specific cooling capacity
Simple installation
Extremely compact and robust package
Personalized design and wide availability of options

DIONISIO - CKWA/C
